2021 GB RANGER Disc Sport



  • Japan Toray High Modulus Carbon Fiber T-1000
  • Frame Set Approved by UCI for professional racing use
  • The latest Shimano “ Full Set “ Hydraulic Disc Brake system(R7020)
  • The First bike brand adopts USA High-Tech Damping material “Innegra” into the frame set .
  • Lifetime Warranty



Outstanding, the perfect design of Asymmetrical balance. Dominate of the same level bikes.

Asymmetrical Painting Design

Asymmetrical balance strategy perfectly achieve dual tone concept , created a new bicycle color trend-【2IN1】2 color in 1 bike.

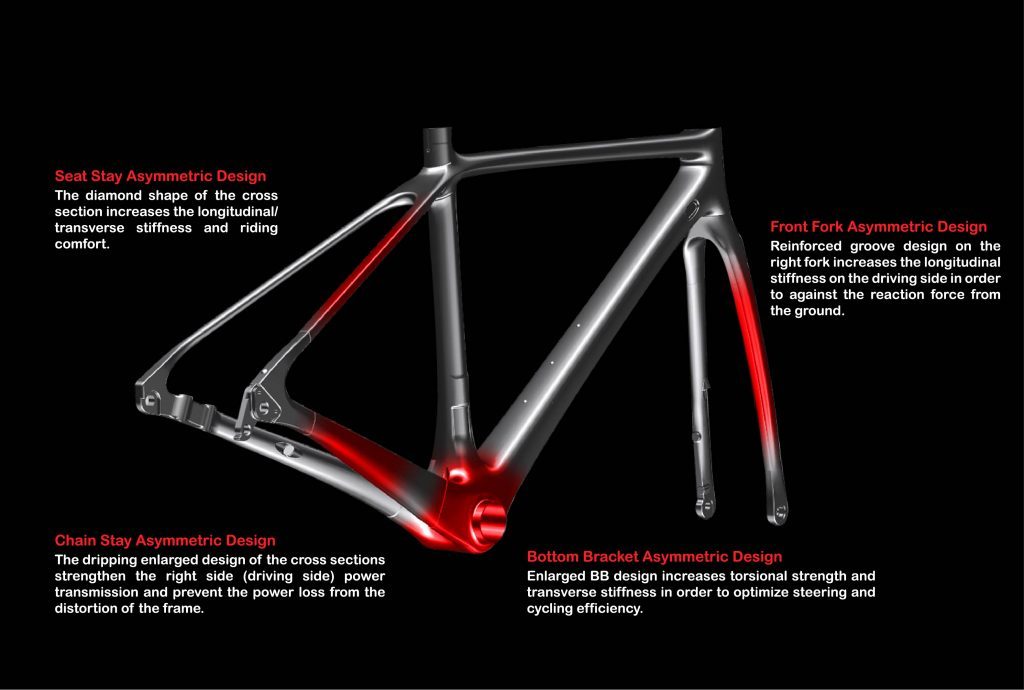

As the tread of the transmission system are located on the right side of the frame, we do increased size of bb part and right rear fork to substantial increase the rigidity of the frame, effectively reduce the stress deformation, reduce power loss, to achieve [Asymmetric] Perfect balance.

INNEGR  and Japan’s Torayca T1000 Carbon Composite Technology

The body material is made of the highest-grade Japanese-made carbon fiber material T1000, coupled with world’s lightest high-performance fiber INNEGRATM. The combination of high-tech materials has greatly improved the rigidity of the frame and the stability of shock absorption.

D-frame top tube design

Through the design of the D-shaped top tube and the change in the arrangement of carbon fiber materials, the overall frame rigidity during sprinting and climbing is improved. In addition, under the simultaneous application of the American advanced shock-absorbing material INNEGRA, the shock-absorbing capacity is further improved, bringing excellent cabin comfort.


ANP Aurora Nano Paint In addition to increase the product scratch & dirt resistance, The newly developed coating can enhance 40% color shining level of the product.


complete transmission/disc brake system

The whole car adopts the latest R7020 complete transmission/disc brake system. The gear ratio of 11/34T is adopted in the selection of the flywheel, which saves effort in climbing. At the same time, it is equipped with hydraulic disc brakes. Due to the material of the discs and discs in the calipers , Has a coefficient of friction greater than that of the traditional C-clamp, and the hydraulic disc brake system only needs lighter force to push the mercury to drive the brake, which is more than the traditional C-clamp or mechanical disc brake (wire drive) Great braking force. The whole car is equipped with the above-mentioned transmission/disc brake system, so you can easily control it regardless of terrain.

FULCRUM -Racing 900 DB

Light and fast Fulcrum’s Racing 900DB wheelset are a solid investment. 12mm thick thru axle hubs provide incredible stiffness and efficient pedal power transfer and utterly dependable steering. Centre lock disc brakes deliver stopping power that works wet or dry giving you ultimate control on and road.

Integrated carbon fiber frame seat tube design

The SPORT Series specification is matched with the well-known American brand Controltech CLS aluminum alloy seat tube, which provides an enlarged seat cushion adjustment stroke, which has reached the optimal setting of the riding cockpit. The exterior design of the seat tube of the frame itself, combined with the asymmetrical painting on both sides of the body, and the race check pattern on the body, in addition to the full sense of fashion, it is more exciting on the track.


Selle Italia Novus Boost Saddle

Short version saddle is coming in new generation, saddle on RCR TEAM, Italia premium brand Selle Italia is 100% handmade by Italia to making the latest NOVUS BOOST saddle. Its compact shape with the innovative bevelled tip making for a wholly adaptable sit, the double-density padding just on the strategic zone of the saddle and the large cut on the center from the Super flow technology make this saddle the newest of the last generations.

XTRM Bar Tape

Using the highest level of anti-dirty PU material, non-general foam material can be repeated scrub, 0.3mm thick design to enhance the overall comfort of the grip.
